  • CY-25B 30kg capacity 1' Inch Sheet Steel UFO Disc Ball Transfer Unit
CY-25B 30kg capacity 1' Inch Sheet Steel UFO Disc Ball Transfer Unit

CY-25B 30kg capacity 1' Inch Sheet Steel UFO Disc Ball Transfer Unit

  • Main Ball Size: 25mm
  • Suggest Dynamic Load: 25kg
  • Max. Dynamic Capacity: 30kg
  • Net Weight: 150g
  • Product description: CY-25B Pressed steel ball transfer unit offers smooth and reliable ball rotation for transfer systems. Pressed steel housing with zinc plating provides reliable strength and corrosion protection for i
  • INQUIRY

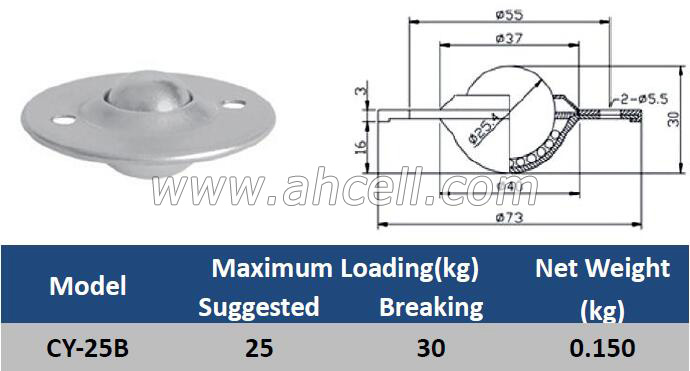

CY-25B ball transfer unit


Model

Maximum Loading(kg)

Net weight

(kg)

Suggested

Breaking

CY-25B

25

30

0.150
CY-25B Ball Caster Roller <a href=https://www.balltransfersystem.com/product.html target='_blank'>ball transfer unit</a>
