  • IK-38B 250kg capacity Flanged Down Facing Ball Transfer Unit

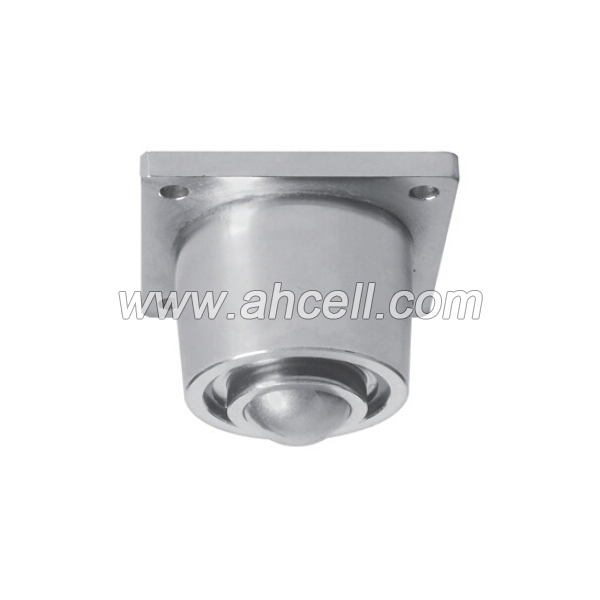

IK-38B 250kg capacity Flanged Down Facing Ball Transfer Unit

IK-38B 250kg capacity Flanged Down Facing Ball Transfer Unit

  • Main Ball Diameter: 38mm
  • Suggested Dynamic Load: 200kg
  • Max. Dynamic Load: 250kg
  • Net Weight: 2.6kg
  • Product description: The IK-38B series down facing inverted ball transfer unit provides efficient omni directional movement for industrial use. Heavy duty solid steel construction ensures precision performance and excepti
  • INQUIRY

38mm Ball, Flange Mount Down Facing ball transfer unit

IK-B Flanged Steel Dwon Facing <a href=https://www.balltransfersystem.com/product.html target='_blank'>ball transfer unit</a>

Model

d

L

H

h1

h2

P

a

Maximum Loading(kg)

Net weight

Suggested

Breaking

(kg)

IK-38B

38.1

100

75

9.7

10.0

80

9.0

200

250

2.600



A Leading ball transfer units Manufacturer in China
